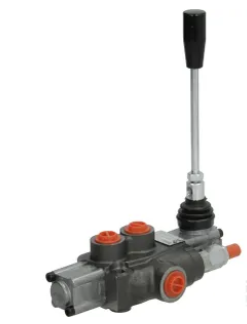

Valve - Directional Control

Qty:

Features

Max. flow rate	35 l/min
Number of sections	1
Type	Monobloc
Type actuation	Hand operated
Spools and detends code	A-8
Spools and detends description	1x double-acting, detent in all positions
Outlet port option	Open centre
Pressure port P - Thread diameter	3/8 Inch
Pressure port P - Thread type	BSP
Workports thread diameter	3/8 Inch
Workports thread type	BSP
Tank port T - Thread diameter	1/2 Inch
Tank port T - Thread type	BSP
Valve series	P35
Model code	P35-A8G-KY1
Max working pressure	300 BAR
Pressure range relief valve	63-200 BAR
Max return line pressure	50 BAR
Adjustment type	Socket screw
Sealing material	Nitrile rubber [NBR]
Max. leakage	5 cm³/min
Handle length	80 mm
Extra info	Double acting, fixed in position 1 and 2
