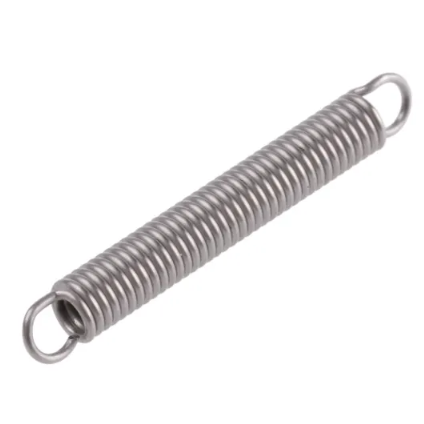

SPRING, WOODEN QUARTERS, FOR O

SPRING, WOODEN QUARTERS, FOR O

SPRING, WOODEN QUARTERS, FOR O

SPRING, WOODEN QUARTERS, FOR O

5000775

Qty:

Specifications

Specifications

Specifications

More Information

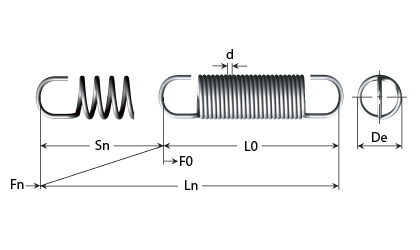

Material	Stainless steel 302
d - Wire diameter (mm)	1.60
De - External diameter (mm)	12.70
L0 - Unloaded length (mm)	114.30
Ln - Max. loaded length (mm)	204.72
Sn - Maximum travel (mm)	90.42
Fn - Maximum load at Ln (N)	69.66
F0 - Initial force (N)	6.30
R - Spring constant (N/mm)	0.70
Range	B
